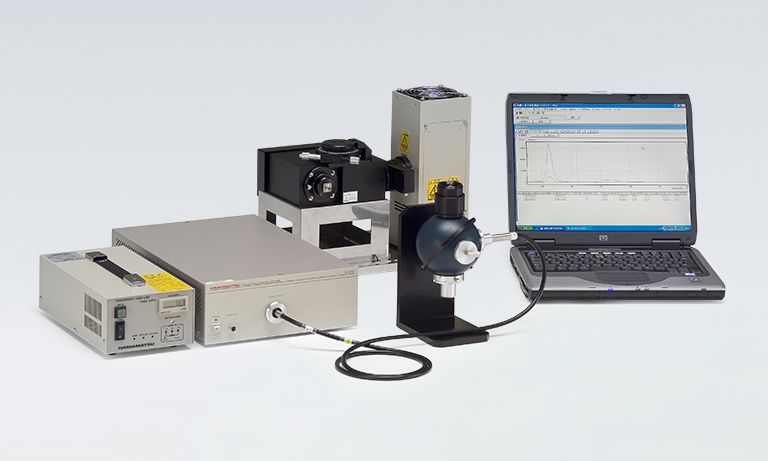

C9920系列絕對PL量子產率光譜儀采用PL（光致發光）方法快速準確地測量絕對量子產率。
C9920系列產品包括激發光源，單色器，能夠產生氮氣流的積分球和用于同時檢測整個光譜范圍的CCD光譜儀。 專用軟件使操作變得簡單。 兩個樣品架可用于容納液體樣品的薄膜，粉末和比色皿。 C9920-02和-03系統適用于工業，生物和學術研究等各個領域。
詳細參數
| 型號 | C9920-03 |
|---|
| PL 測量波長范圍 | 400 nm to 1100 nm |
|---|
| 單色光源：光源 | 150 W Xenon light source |
|---|
| ：激發波長 | 375 nm to 800 nm |
|---|
| ：帶寬 | 10 nm or less (FWHM) |
|---|
| ：利用光來防止樣品降解 | Excitation light interception by the mechanical shutter |
|---|
| ：激發波長控制 | Manual |
|---|
| 多通道光譜儀：波長側量范圍 | 350 nm to 1100 nm |
|---|
| ：波長分辨率 | < 2.5 nm |
|---|
| ：光靈敏元器件通道個數 | 1024 ch |
|---|
| ：元器件冷卻溫度 | -15 ?C |
|---|
| ：AD 分辨率 | 16 bit |
|---|
| ：光譜儀光學配件 | Czerny-Turner type |
|---|
| ：光纖種類 | Bundled fiber (1.5 m) |
|---|
| ：光纖接受面積 | Φ1 mm |
|---|
| 積分球：材料 | Spectralon |
|---|
| ：尺寸 | 3.3 inch |
|---|
| 樣品臺(可選)：薄膜 | Using Laboratory dish without caps (5 sets) A10095-01 (not including a substrate) |
|---|
| ：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
|---|
| ：溶液 (正常溫度) | Using Alignment tool for liquid measurement A10104-01 |
|---|
| ：溶液 (低溫) | -196 ?C (77 K) by using Sample holder for low temperature A11238-01 |
|---|
| ：溫度控制 | RT(Room temperature) to +300 ?C by using Sample holder for temperature control A13924-03 with Controller for temperature control C13923-01 |
|---|
| 樣品臺 (可選)：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
|---|
| ：溶液 (正常溫度) | Using Side-arm cell (3 sets) A10095-02 |
|---|
| ：溶液 (低溫) | -196 ?C (77 K) by using Sample tube for low temperature measurement (5 pcs) A10095-04 |
|---|
| 測量內容 | PL quantum yield
Fluorescent materials luminance efficiency measurement (quantum yield x absorption)
Excitation wavelength dependence of quantum yield (-02G, -03G)
PL spectrum (peak wavelength, FWHM)
PL excitation spectrum (-02G, -03G)
Color measurement (chromaticity, color temperature, color rendering index, etc.)
Self-absorption correction (Optics for transmission and fluorescence measurement A11238-03 is required) |
|---|
| 型號 | C9920-02 |
|---|
| PL 測量波長范圍 | 300 nm to 950 nm |
|---|
| 單色光源：光源 | 150 W Xenon light source |
|---|
| ：激發波長 | 250 nm to 800 nm |
|---|
| ：帶寬 | 10 nm or less (FWHM) |
|---|
| ：通過光降低樣品的講解 | Excitation light interception by the mechanical shutter |
|---|
| ：激發波長控制 | Manual |
|---|
| 多通道光譜儀：測量波長范圍 | 200 nm to 950 nm |
|---|
| ：波長分辨率 | < 2 nm |
|---|
| ：光靈敏元器件通道個數 | 1024 ch |
|---|
| ：元器件冷卻溫度 | -15 ?C |
|---|
| ：AD 分辨率 | 16 bit |
|---|
| ：光譜儀光學配件 | Czerny-Turner type |
|---|
| ：光纖種類 | Bundled fiber (1.5 m) |
|---|
| ：光纖接受面積 | Φ1 mm |
|---|
| 積分球：材料 | Spectralon |
|---|
| ：尺寸 | 3.3 inch |
|---|
| 樣品臺 (可選)：薄膜 | Using Laboratory dish without caps (5 sets) A10095-01 (not including a substrate) |
|---|
| ：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
|---|
| ：溶液 (正常溫度) | Using Alignment tool for liquid measurement A10104-01 |
|---|
| ：溶液 (低溫) | -196 ?C (77 K) by using Sample holder for low temperature A11238-01 |
|---|
| ：溫度控制 | RT(Room temperature) to +300 ?C by using Sample holder for temperature control A13924-03 with Controller for temperature control C13923-01 |
|---|
| 樣品臺 (可選)：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
|---|
| ：溶液 (正常溫度) | Using Side-arm cell (3 sets) A10095-02 |
|---|
| ：溶液 (低溫) | -196 ?C (77 K) by using Sample tube for low temperature measurement (5 pcs) A10095-04 |
|---|
| 測量內容 | PL quantum yield
Fluorescent materials luminance efficiency measurement (quantum yield x absorption)
Excitation wavelength dependence of quantum yield (-02G, -03G)
PL spectrum (peak wavelength, FWHM)
PL excitation spectrum (-02G, -03G)
Color measurement (chromaticity, color temperature, color rendering index, etc.)
Self-absorption correction (Optics for transmission and fluorescence measurement A11238-03 is required) |
|---|
| 型號 | C9920-03G |
| PL 波長測量范圍 | 400 nm to 1100 nm |
| 單色光源：光源 | 150 W Xenon light source |
| 單色光源：激發波長 | 375 nm to 1000 nm |
| 單色光源：帶寬 | Approx. 2 nm to 5 nm (Varies with slit) |
| 單色光源：通過光降低樣品的降解 | Excitation light interception by the mechanical shutter |
| 單色光源：激發波長控制 | Automatic control |
| 多通道光譜儀：測量波長范圍 | 350 nm to 1100 nm |
| 多通道光譜儀：波長分辨率 | < 2.5 nm |
| 多通道光譜儀：光敏器件通道數 | 1024 ch |
| 多通道光譜儀：設備制冷溫度 | -15 ?C |
| 多通道光譜儀：AD 分辨率 | 16 bit |
| 多通道光譜儀：光譜儀光學布置 | Czerny-Turner type |
| 多通道光譜儀：光纖類型 | Bundled fiber (1.5 m) |
| 多通道光譜儀：光纖接收面積 | Φ1 mm |
| 積分球：材料 | Spectralon |
| 積分球：尺寸 | 3.3 inch |
| 樣品盒 (選項)：薄膜 | Using Laboratory dish without caps (5 sets) A10095-01 (not including a substrate) |
| 樣品盒 (選項)：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
| ——溶解 (正常溫度) | Using Alignment tool for liquid measurement A10104-01 |
| ——溶解 (低溫) | -196 ?C (77 K) by using Sample holder for low temperature A11238-01 |
| ——溫度控制 | RT(Room temperature) to +300 ?C by using Sample holder for temperature control A13924-03 with Controller for temperature control C13923-01 |
| 樣品盒（選項）：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
| ——溶解 (正常溫度) | Using Side-arm cell (3 sets) A10095-02 |
| ——溶解 (低溫) | -196 ?C (77 K) by using Sample tube for low temperature measurement (5 pcs) A10095-04 |
| 測量項目 | PL quantum yield Fluorescent materials luminance efficiency measurement (quantum yield x absorption) Excitation wavelength dependence of quantum yield (-02G, -03G) PL spectrum (peak wavelength, FWHM) PL excitation spectrum (-02G, -03G) Color measurement (chromaticity, color temperature, color rendering index, etc.) Self-absorption correction (Optics for transmission and fluorescence measurement A11238-03 is required) |
| 型號 | C9920-02G |
| PL 波長測量范圍 | 300 nm to 950 nm |
| 單色光源：光源 | 150 W Xenon light source |
| 單色光源：激發波長 | 250 nm to 950 nm |
| 單色光源：帶寬 | Approx. 2 nm to 5 nm (Varies with slit) |
| 單色光源：通過光降低樣品的降解 | Excitation light interception by the mechanical shutter |
| 單色光源：激發波長控制 | Automatic control |
| 多通道光譜儀：測量波長范圍 | 200 nm to 950 nm |
| 多通道光譜儀：波長分辨率 | < 2 nm |
| 多通道光譜儀：光敏器件通道數 | 1024 ch |
| 多通道光譜儀：設備制冷溫度 | -15 ?C |
| 多通道光譜儀：AD 分辨率 | 16 bit |
| 多通道光譜儀：光譜儀光學布置 | Czerny-Turner type |
| 多通道光譜儀：光纖類型 | Bundled fiber (1.5 m) |
| 多通道光譜儀：光纖接收面積 | Φ1 mm |
| 積分球：材料 | Spectralon |
| 積分球：尺寸 | 3.3 inch |
| 樣品盒 (選項)：薄膜 | Using Laboratory dish without caps (5 sets) A10095-01 (not including a substrate) |
| 樣品盒 (選項)：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
| ——溶解 (正常溫度) | Using Alignment tool for liquid measurement A10104-01 |
| ——溶解 (低溫) | -196 ?C (77 K) by using Sample holder for low temperature A11238-01 |
| ——溫度控制 | RT(Room temperature) to +300 ?C by using Sample holder for temperature control A13924-03 with Controller for temperature control C13923-01 |
| 樣品盒（選項）：粉末 | Using Laboratory dish with caps (5 sets) A10095-03 |
| ——溶解 (正常溫度) | Using Side-arm cell (3 sets) A10095-02 |
| ——溶解 (低溫) | -196 ?C (77 K) by using Sample tube for low temperature measurement (5 pcs) A10095-04 |
| 測量項目 | PL quantum yield Fluorescent materials luminance efficiency measurement (quantum yield x absorption) Excitation wavelength dependence of quantum yield (-02G, -03G) PL spectrum (peak wavelength, FWHM) PL excitation spectrum (-02G, -03G) Color measurement (chromaticity, color temperature, color rendering index, etc.) Self-absorption correction (Optics for transmission and fluorescence measurement A11238-03 is required) |
