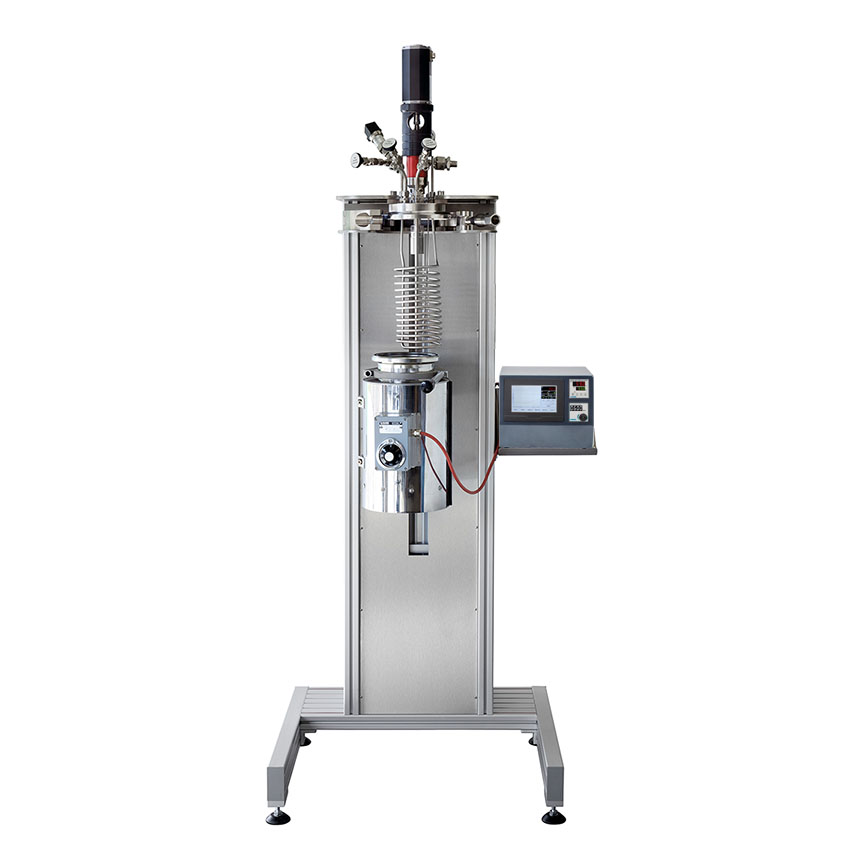

中試型中壓不銹鋼反應釜 NR-40L
* 體積: 40 L
* 溫度：最高 250℃
* 壓力：最高 20 bar
* 釜體，釜蓋帶鏈?zhǔn)娇扉_夾（SS-316TI），雙層夾套
* Viton O-型圈
* SS-316TI配件：包括兩個調節閥，一個爆破片，0-16 bar壓力表，帶套管的Pt-100 (? 3mm) 傳感器，氣體閥門
* 安裝后即可使用，通過 AD-2000壓力測試認證
套裝技術參數
| 訂貨號 | 名稱 | 描述 |
中低壓反應釜套裝 NR-40L |
釜體 | NR-40L | NR-40L 低壓反應釜 | 釜體測試壓力：33bar 夾套耐受壓力：3bar 夾套測試壓力：7bar |
通用配件 | 5728091 | RV 300 磁耦軸承 | Magnetic clutch RV 300 made of SS-316TI with Reed contact, torque 300 Ncm, 300℃ , max. viscosity 12,000 mPa?s (4.5cP) at max. 10000ml |
5727400 | RV-400 SS 磁耦軸承 （推薦） | Magnetic clutch RV 400 made of SS 316 TI with Reed contact, torque 400 Ncm, 300℃ , EX-proof zone 1 |
5728101 | RV 600 磁耦軸承 | Magnetic clutch RV 600 made of SS-316TI with Reed contact, torque 600 Ncm, 300℃ , max. viscosity 24,000 mPa?s (9.0 cP) at max. 10000ml |
5728102 | RV 1400 磁耦軸承 | Magnetic clutch RV 1400 made of SS-316TI with Reed contact, torque 1400 Ncm, 300 ℃ , max. viscosity 30,000 mPa?s (11.5cP) at max.10000ml |
5728092 | 錨式攪拌槳 | Anchor stirrer with 3 blades |
5728093 | 液體進樣閥 | Valve for liquid sampling made of SS-316TI with dip tube made of SS- 316TI (nominal width 4mm) |
5728094 | 液體進樣單元及泄 壓閥 | Liquid sample addition 2L and pressure relief valve up to 25bar |
5728095 | 底閥，SS | Bottom drain valve SS |
5728096 | 無死體積底閥，SS | Bottom drain valve SS with zero dead volume |
5728097 | 觀察窗 | Viewing Window inside reactor made of Borosilicate glass, 20×200 mm |
5728098 | 透光窗 | Window for illumination inside lid made of Borosilicate glass, O = 44mm |
5728099 | O- 型圈 | O-Ring made of Viton (FKM) for reactors without PTFE-lining |
5728100 | 釜體電動升降支架 | Lift Stand for NR-20L~NR-50L |
5701017 | PTFE 高壓泄壓管 | PTFE High pressure tubing (2.5m; ID 9mm; 550bar) Exhaust tubing for rupture discs, G3/8" female (inlet) -G 3/8" male (outlet) |
5751455 | 爆破片，25bar | Rupture disc made of Monel, D 24mm, 25bar with PFA protection foil and certificate |
